600tex E-glass Direct Roving for Weaving

FOB Reference Price:Get Latest Price
$0.80 - $2.00 / Kilogram | 5 Kilogram/Kilograms (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangxi, China
Brand Name:
CHINA BEIHAI
Model Number:
BH-Roving
Type:
E-Glass
Surface Treatment:
Vinyl Coated
Yarn Structure:
Single Yarn
Technique:
Winding Filament Roving
Tex Count:
2400tex
products:
roving fibers
color:
white
Resin:
EP/UP/VE
Supply Ability
Supply Ability:
3800000 Ton/Tons per Year
Packaging & Delivery
Packaging Details
Polybag then with carton pakcing
Port
shanghai
Lead Time :
Shipped in 8 days after payment

600tex E-glass Direct Roving for Weaving



Product Description



Direct Roving for weaving is compatible with unsaturated polyester,

vinyl ester and epoxy resins.

Its excellent weaving property makes it suited for fiberglass product,

such as roving cloth, combination mats, stitched mat, multi-axial fabric, geotextiles, molded grating.

The end-use products are widely used in building & construction,

wind power and yacht applications.

Product Features:

1) Good process performance and low fuzz

2) Compatibillty with multiple of resin systems

3) Good mechanical properties

4) Complete and fast wet-out

5) Excellent acid corrosion resistance



 direct roving3

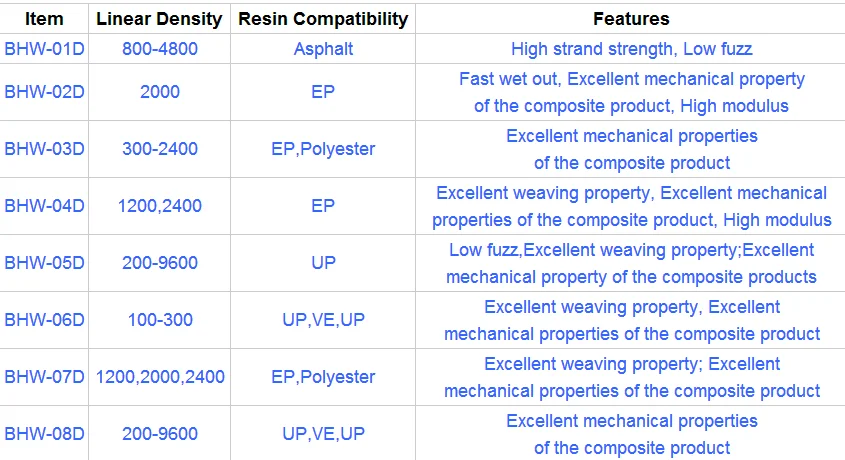

Identification
Type of GlassE
Direct RovingR
Filament Diameter, μm13161717222431
Linear Density, tex300200,400600,7351100,120022002400,48009600

Technical Parameters
Linear Density  (%)Moisture Content  (%)Size Content  (%)Breakage Strength (N/Tex)
ISO1889ISO3344ISO1887IS03341
±5≤0.100.55±0.15≥0.40




Shipping & Storage

Unless otherwise specified, fiberglass products should be stored in a dry, cool and rain-proof area. It is recommended that the room temperature and humidity should be always maintained at 15℃~35℃ and 35%~65% respectively. To ensure safety and avoid damage to the product, the pallets should not be stacked more than three layers high. When the pallets are stacked in 2 or 3 layers, care should be taken to correctly and smoothly move the top pallet.

Packaging

The product can be packed on pallet or in small cardboard boxes.

Package height mm (in)260(10)260(10)
Package inside diameter mm(in)160(6.3)160(6.3)
Package outside diameter mm(in)270(10.6)310(12.2)
Package Weight kg(lb)15.6(34.4)22(48.5)



Number of layers3434
Number of doffs per layer1612
Number of doffs per pallet48643648
Net Weight per pallet kg(lb)750(1653.4)1000(2204.5)792(1764) 1056(2328)



Pallet Length mm(in)1120(44)1270(50)
Pallet Width mm(in)1120(44)960(37.8)
Pallet height mm(in)940(37)1180(45)940(37)1180(46.5)



                                Assembled Roving-packing

LOADING

Application

Direct Roving-Application2

Our Services
  • Alibaba.png For more please check--Trade Assurance
  • Your inquiry will be replied within 24hours
  • 14 years Alibaba Gold member
  • Free sample


Contact Us

Tel: +86 792 8322300/8322322/8322329
Cell: +86 13923881139
Fax: +86 792 8322312
website:  http://www.fiberglassfiber.com
website on alibaba.com:  http://chinabeihai.en.alibaba.com
Online contacts: Whatsapp & wechat: +86-13923881139

FAQ
1.Moq:1000kgs
2.Delivery time:15days after confirm order
3.Payment term:T/T 30%  deposit in advance,70% balance before shipment date.
